Standing Type Electric Stacker

Home > Full Electric Stacker > 1.5t & 2t / Standard Electric Stacker 1.5t & 2t

1.5t & 2t / Standard Electric Stacker 1.5t & 2t

Product Name:
1.5t & 2t / Standard Electric Stacker 1.5t & 2t
Model No.:
HL15 & HL20
Minimum Order:
1

Product Abstract:

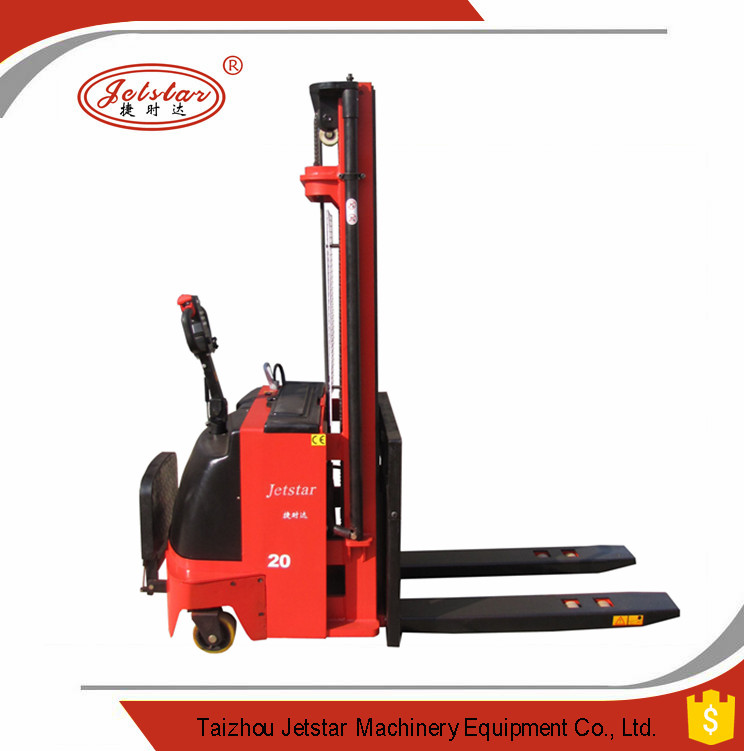

Standing Type Electric Stacker

Product Description

Electric stackers are designed to operate in narrow aisle and limited space, and are ideal facilities to load/unload and stack goods in stacking warehouses, supermarket and workshop etc. With variable speed adjustment and wide view mast made of top quality steel, these stackers can lifting the cargo to Max. 6 meters and with optional standing platform.

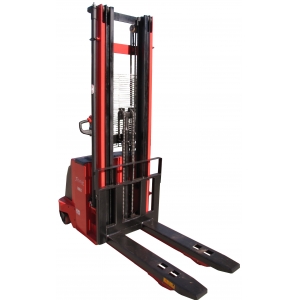

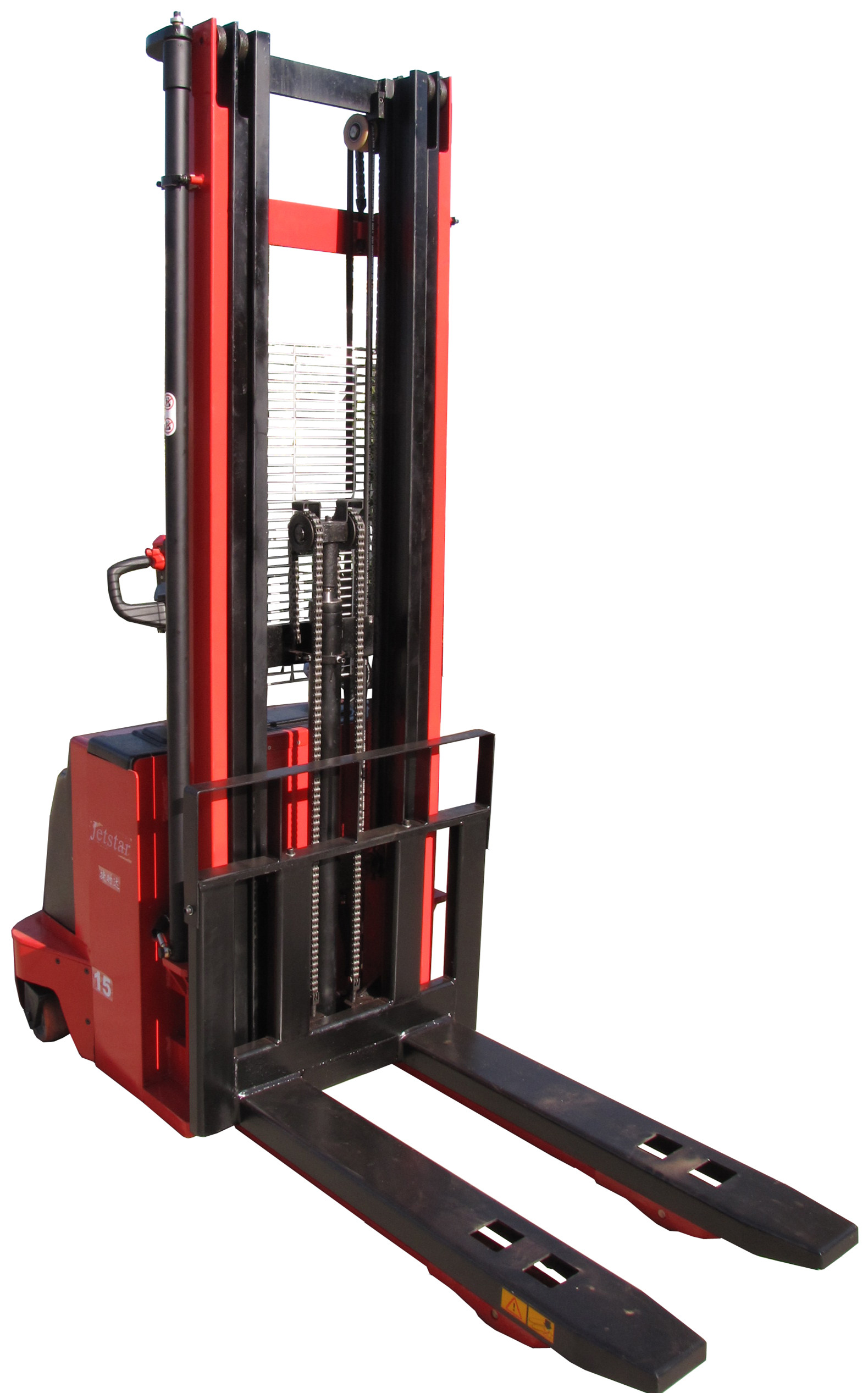

Standard Electric Stacker (1.5T /2T)
Model		Unit	HL15		HL20
Parameter List	Drive Type		Electric
	Operation Type		Walking/ Stand-on
	Controlling Type		Universal Motor and Variable speed
	Brake Type		Magnetic Brake
	Load Capacity	kg	1500		2000
	Load Center Distance	mm	600
	Travel Speed (Laden/unladen)	km/h	4/6
	Lifting Speed ( Laden/unladen)	mm/s	80/130
	Lowering Speed (Laden/Unladen)	mm/s	110/90
	Gradeability (Laden/unladen)	%	5/8

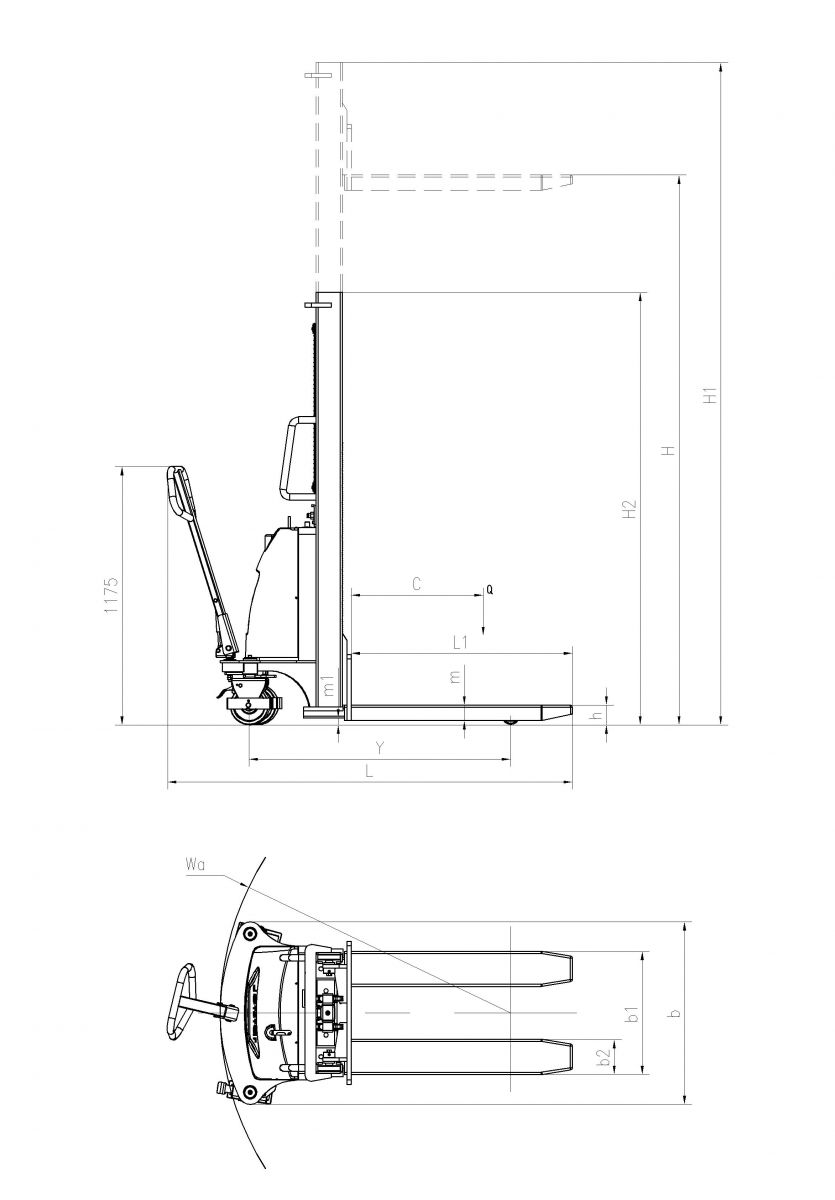

Dimension	Overall Length with folded pedal/ extended pedal	mm	2065/2490
	Overall Width	mm	850
	Lifting Height	mm	1600/2500/3000/3300/3500/4000
	Mast Lowered Height	mm	1980/1765/2015/2165/2265/2515
	Mast Extended Height	mm	1980/2975/3475/3775/3975/4475
	Min. Lowered Height of Fork	mm	90
	Ground Clearance	mm	30
	Fork Dimension	mm	115018070
	Distance between fork-arms	mm	570/680
	Turning Radius	mm	1725
	Wheel Base	mm	1455
Wheels	Rear Wheel (Dia. x Width)	mm	Φ250*100
	Front Wheels (Dia. x Width x Qty.)	mm	Φ80704
	Balance Wheels (Dia. x Width x Qty.)	mm	Φ156502
Electrical Parameter List	Driving Motor S2 60 minute rating	KW	1.2	1.5
	Lifting Motor S3 15% rating	KW	2.5
	Charger	V/A	24/25 or 24/30
	Battery	Ah/V	165/24 or 210/24
