Economical Electric Stacker

Economical Electric Stacker

Product Abstract:

Economical Electric Stacker


Product Description

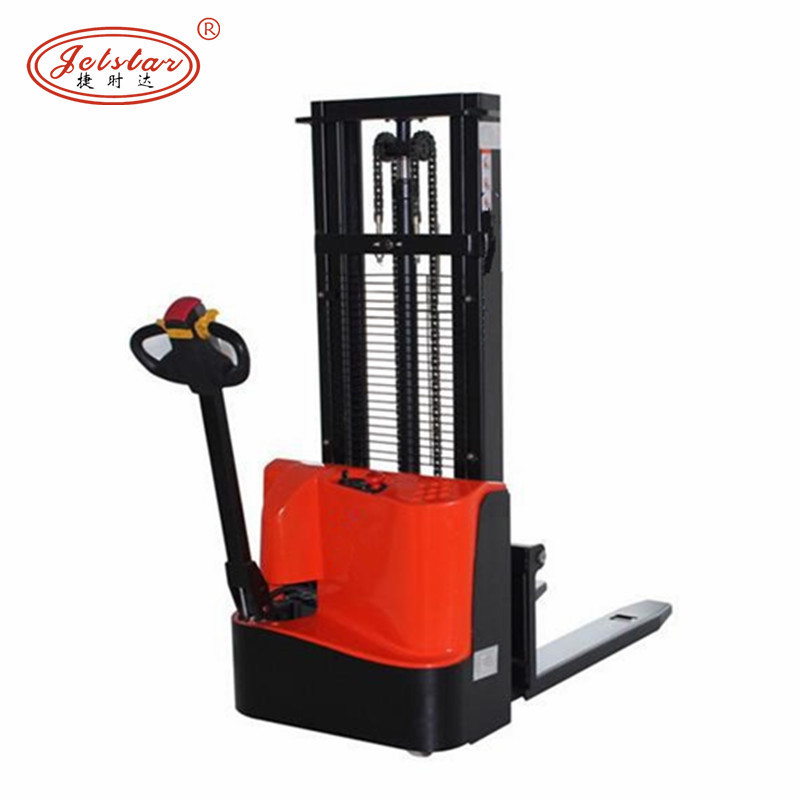

Economical Electric Stacker (24V )

Name

Walkie Full Electric Stacker(24V)

Model No.

Unit

EFD10C-16

EFD10C-25

EFD10C-30

EFD15C-16

EFD15C-25

Load Capacity

Kg

1000

1000

1000

1500

1500

Max lifting height

H(mm)

1600

2500

3000

1600

2500

Load center

C(mm)

500

500

500

500

500

Wheel Type



Pu solid tire

Fork size

mm

1150X160

1150X160

Fork outer distance

mm

680

680

680

680

680

Overall length

L(mm)

1785

1785

1785

1785

1785

Overall width

S(mm)

800

800

800

800

800

Height--Mast Lowered

H1(mm)

2075

1825

2075

2075

1825

Maximum height when fork is lifting

H2(mm)

2075

3033

3533

2075

3033

Min. Fork height

h1(mm)

85

85

85

85

85

Turning radius

W(mm)

1380

1380

1380

1380

1380

The front wheels to the fork end distance

(mm)

430

430

430

430

430

Min. stacking aisle 1000*1000 pallet

mm

2155

2155

2155

2155

2155

Max. Walking Speed

Km/h

3.5/4

3.5/4

3.5/4

3.5/4

3.5/4

Grade ability

%

3/6

3/6

3/6

3/6

3/6

Total Weight

Kg

506

546

566

596

666

Driving wheel

mm

Ø210*70

Front wheel

mm

Ø80*70

Balance wheel

mm

Ø125*50

Battery capacity

V/Ah

2*12/80

Driving motor

Kw

0.75

Lifting motor

Kw

2.2

Walking Adjustable Type



Holzer type accelerator
