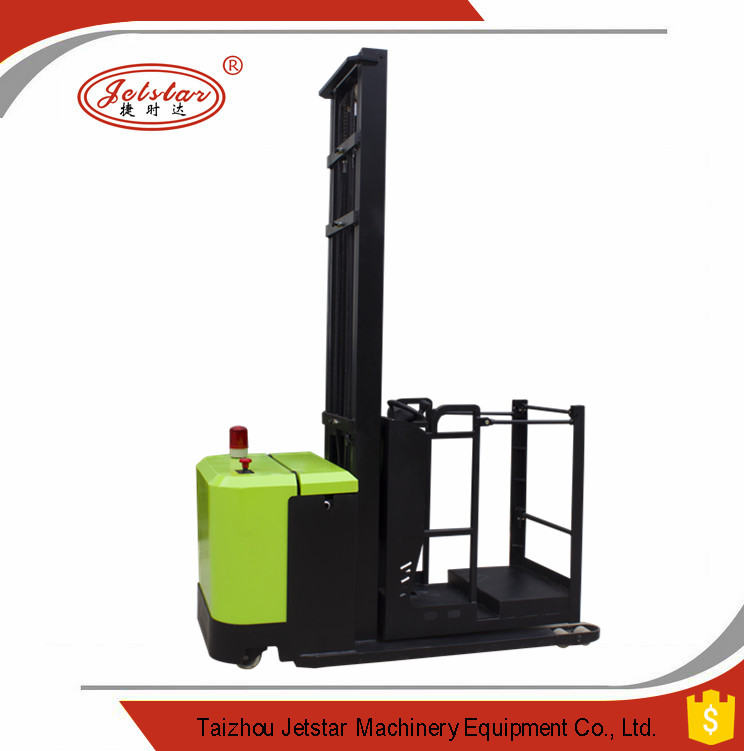

Electric Order Picker

Electric Order Picker

Product Abstract:

Electric Order Picker


Product Description

1.     The machine has the advantages of light weight, high mobility and suitable for single operation.

2.     It can enter into the commonly elevator, go through the door opening smoothly, and get into narrow opening because of compact structure and small transport state size.

3.     It has 160mm of ground clearance. Dual protection of the leg structure makes the work more safely, and can close to the working face.

4.     The order picker is equipped with an alarm to ensure the driving safety.

5.     Low voltage protection system can prolong the period of battery. It has AC drive system, no replacement carbon brush, strong climbing capacity and regenerative braking function.



??Model No.

??

Unit

CDD10X-45

??Load Capacity

Kg

300

??????Max lifting height

H(mm)

4500

????Load center

C(mm)

500

Pedal clearance from the ground

?mm?

160

????Wheel type



 Polyurethane solid tire

????Fork size

mm

780*630

??????Free lift height

mm

0

??Overall length

L(mm)

1910

??Overall width

S(mm)

900

???????Height--Mast Lowered

H1(mm)

2830

?????????Maximum height when fork is lifting

H2(mm)

5600

????Turning radius ?when the pedal fold?

Wa(mm)

1785

??????Max.Walking Speed

Km/h

4.0/5.8

????Grade ability

%

3-6

??Total weight

Kg

1250

???Driving Wheel

mm

Ø230*75

??Front wheel

mm

Ø80*70

???Balance wheel

mm

Ø125*50

????Battery capacity

V/Ah

24/210

???Charger-Intelligent

V/A

24/30

????Driving motor

Kw

1.5

????Lifting motor

Kw

2.2

??????Walking Adjustable Type



??????Holzer type accelerator
