Full Electric Drum Tilter Counter

Home > Oil Drum Dumper > Full Electric Drum Tilter Counter

Product Abstract:

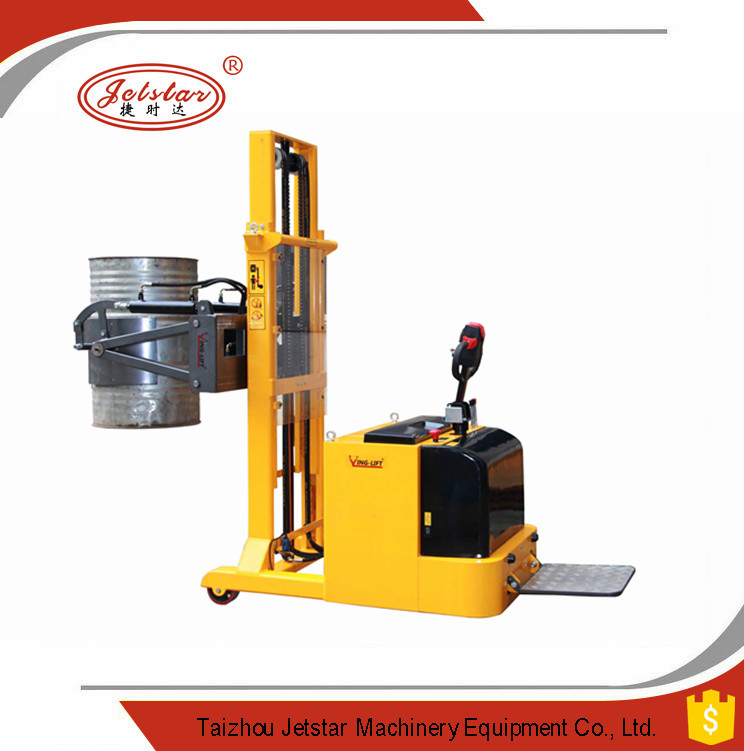

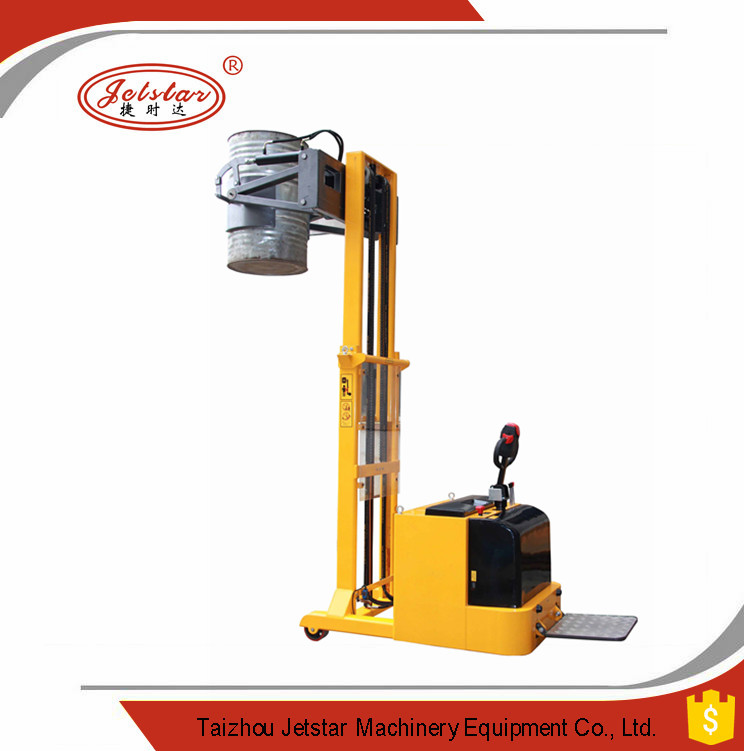

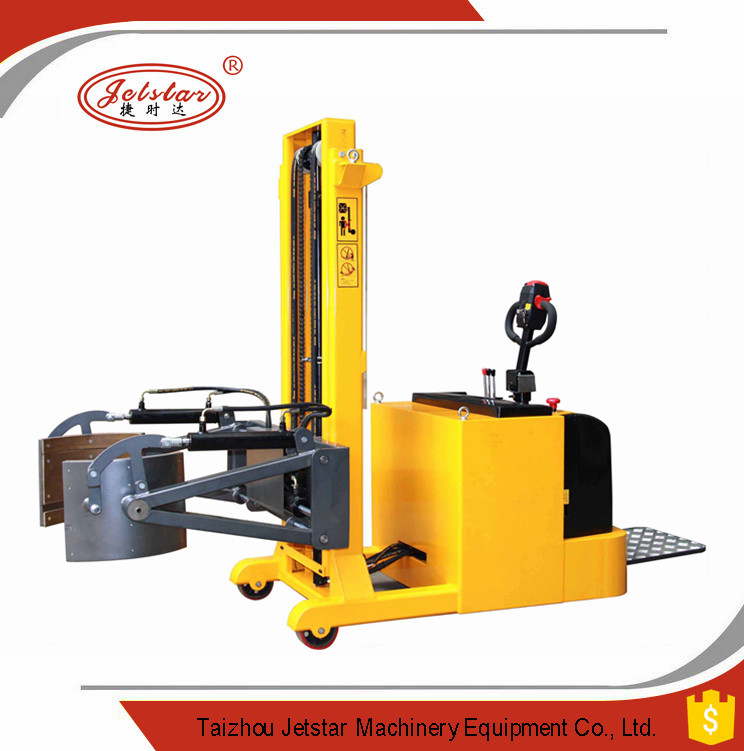

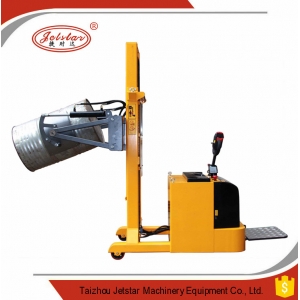

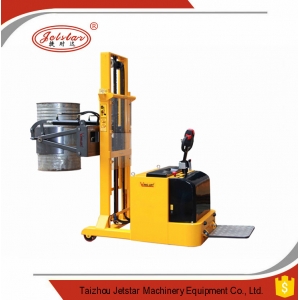

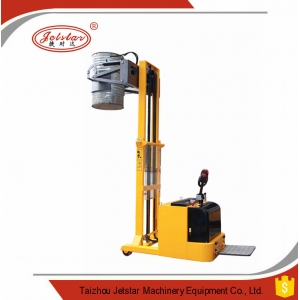

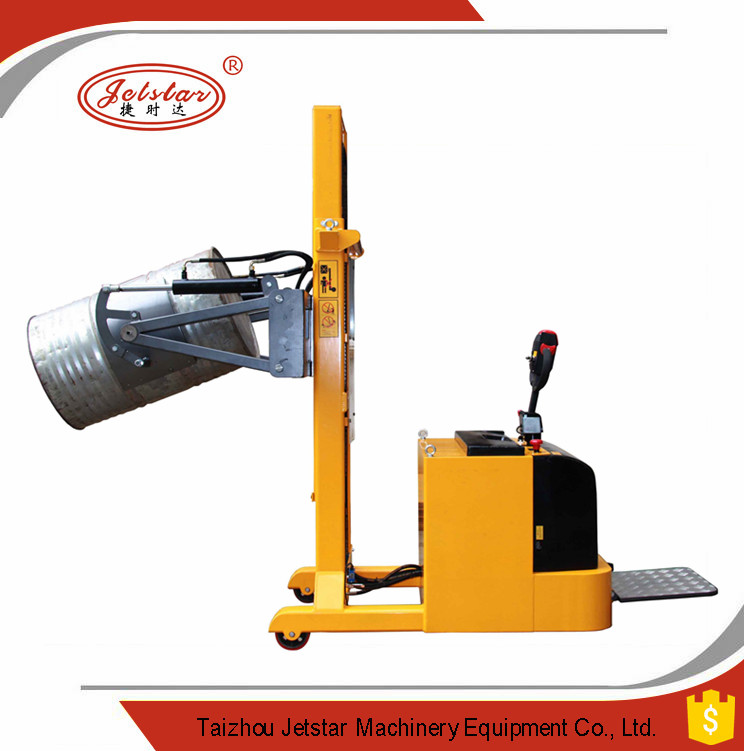

Counter balance Full Electric Drum TilterYL420A

Product Description

Feature of Full Electric Drum Tilter Counter Balance 420kg YL420A:

- Max. Load capacity 420kg;

- Power drive, transport, lift and tilt 55 gallon steel drums;

- Imported electrical vehicle exclusive walking control system;

- With manned pedal and can be operated by one people, labor saving and high work efficiency;

- With step-less speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel;

Technical of Counter balance Full Electric Drum TilterYL420A:

Model		Counter balance Full Electric Drum TilterYL420A
Drive type	/	Electric
Operating type	/	Standing steer type
Rated load capacity	kg	420
Lifting height	mm	2400
Total height	mm	1860
Total length	mm	2270
Total width	mm	1170
Turning radius	mm	2120
Max. Grade ability (Fully-loaded/no-loaded)	%	3/5
Driving wheel size	mm	Ø250*80
Tire	/	Polyurethane
Brake type	/	Electromagnetic braking
Drive motor power	kw	1.2
Lifting motor power	kw	2.2
Noise level	db(A)	<70
Battery voltage/capacity	V/Ah	24/210
Charger	V/A	24/30
Net weight	kg	1100
Drum rotating range	°	135
