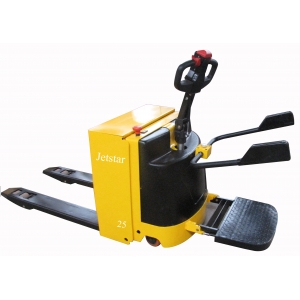

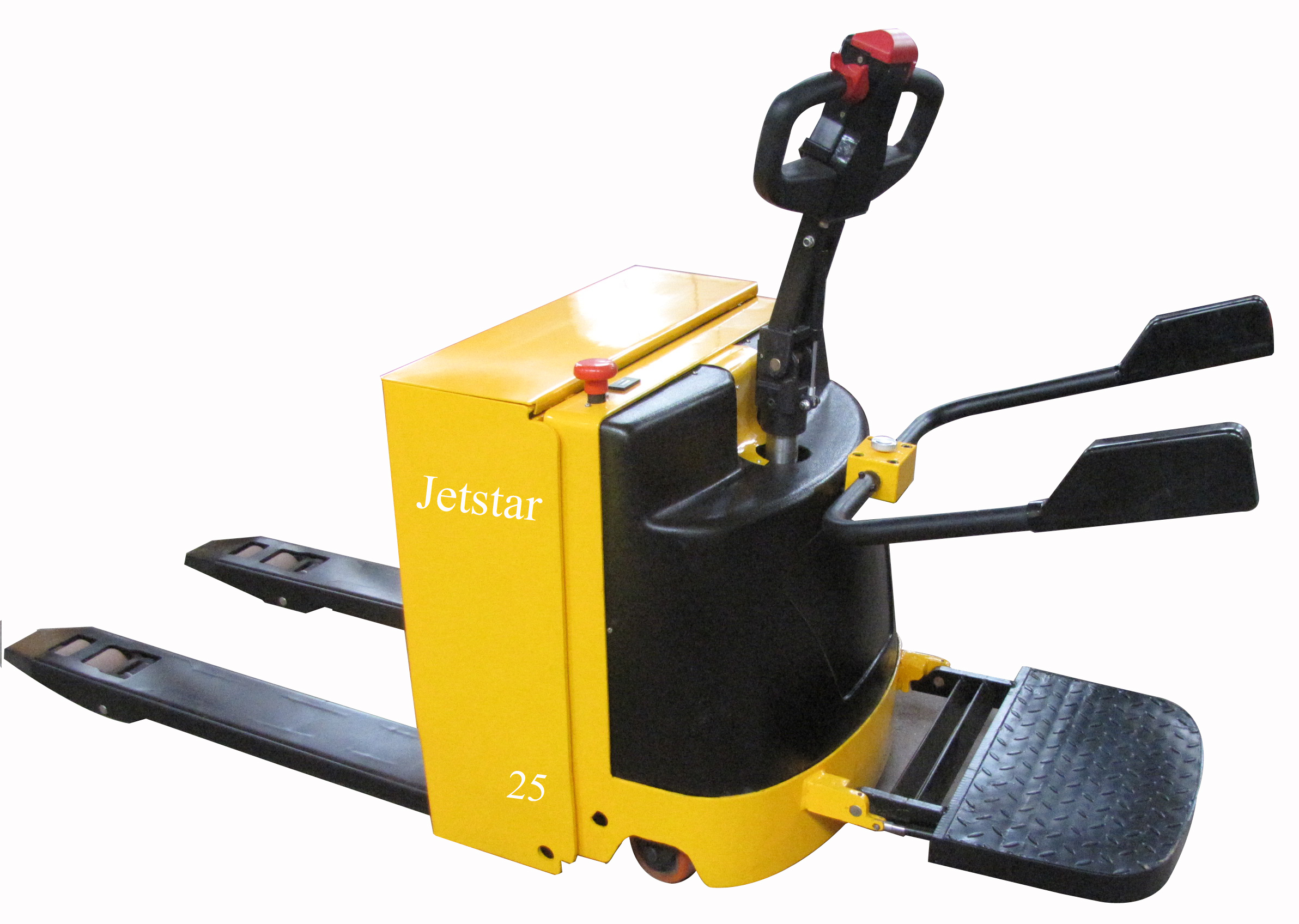

Pedal Electric Pallet Truck

Pedal Electric Pallet Truck

Product Abstract:

Pedal Electric Pallet Truck?24V?


Product Description



Pedal Electric Pallet Truck

Name

Pedal Electric Pallet Truck?24V?

Operation Type

Standing Type

Model No.

Unit

CBD20

CBD25

CBD30

Power Type



Full Electric

Load Capacity

kg

2000

2500

3000

Max. Lifting Height

H(mm)

200

200

200

Load Center

C(mm)

600

Wheel Type



Polyurethane solid tire

Fork Size

mm

1200*175

1200*175

1200*175

Width over forks

mm

685

685

685

Fork Clearance from the Ground

H1(mm)

85

Overall Length when Pedal Folded

L(mm)

1918

1918

1918

Overall Width

S(mm)

780

780

780

Turning Radius When Pedal Closed

Wa(mm)

1760

1760

1760

Distance from Wheel Front to Fork End

mm

180

Right-angled Aisle Width 1000*1200mmpallet(Placed along the fork, Clearance 200)

2490



Right-angled Aisle Width 800*1200 pallet( Placed along the fork, Clearance 200)

2398



Max. Walking Speed

Km/h

4~5

Grade Ability

%

8/10

8/10

6/8

Total Weight

kg

~715

~715

~715

Drive Wheel

mm

Ø230*75

Wheel Front

mm

Ø80×80

Ø80×80

Ø80×80

Balance Wheel

mm

Ø125×50

Ø125×50

Ø125×50

Battery capacity

V/Ah

24/210

24/210

24/210

Charger

V/A

24/30

24/30

24/30

Driving Motor

Kw

1.5

1.5

1.5

Lifting Motor

Kw

0.8

0.8

0.8

Brake Type



Electromagnetic

Drive Controller Type



AC

Walking Adjustable Type



Holzer type accelerator







































































































Performance?



1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.

2. Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.

3. High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.

4. Anti-skid brake function prevent the car from declining when car driving out of control or at slope.

5. AC driving system, Driven steepless speed regulation, safe, quiet, emergency reverse device /emergency brake switch.

6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
