Name

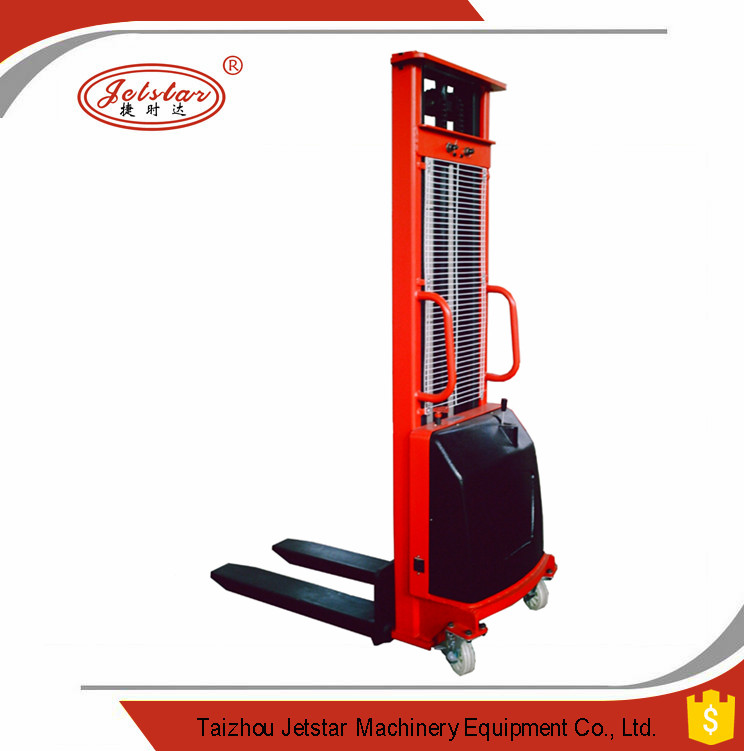

Semi-electric Stacker?12V?

Model No.

Unit

EFA10A-16

EFA10A-25

EFA10A-30

EFA15A-25

EFA20A-16

Load Capacity

Kg

1000

1000

1000

1500

2000

Max lifting height

H2(mm)

1600

2500

3000

2500

1600

Load center

C(mm)

500

500

500

500

500

Fork size

mm

1150X160

1150X160

1150X190

Width over forks

S1(mm)

680

680

680

680

710

Overall Length

L(mm)

1800

1800

1800

1800

1800

Overall Width

S(mm)

775

775

775

775

775

Height--Mast Lowered

H1(mm)

2075

1825

2075

1825

2075

Maximum height when fork is lifting (include fork frame)

H3(mm)

2075

3033

3533

3033

2075

The minimum fork height

h1(mm)

85

85

85

85

85

Turning radius

Wa(mm)

1365

1365

1365

1365

1365

Charger.

V/Ah

12/15

12/15

12/15

12/15

12/15

Min. stacking aisle?1000*1000 pallet?

mm

2140

The front wheels to the fork end distance

mm

428

428

428

428

428

Total weight

Kg

341

383

402

502

421

Lifting motor

Kw

1.6

1.6

1.6

1.6

1.6

Battery capacity

V/Ah

12/120

12/120

12/120

12/120

12/120

The charging voltage

V

?220

?220

?220

?220

?220
