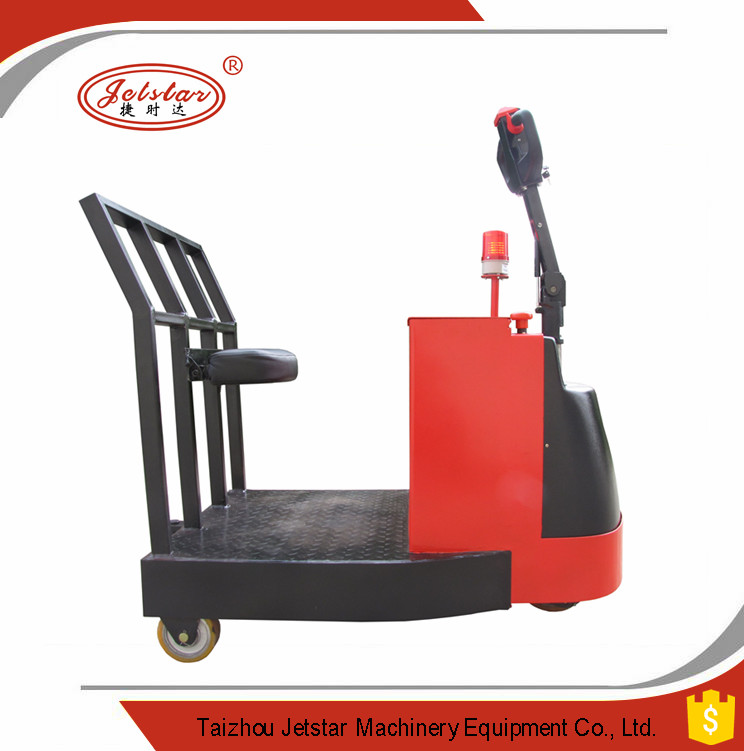

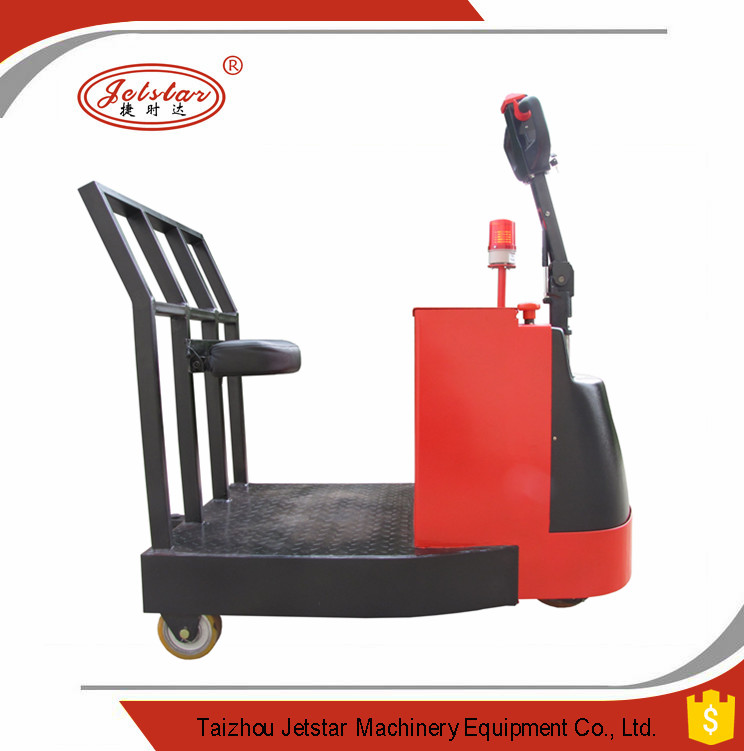

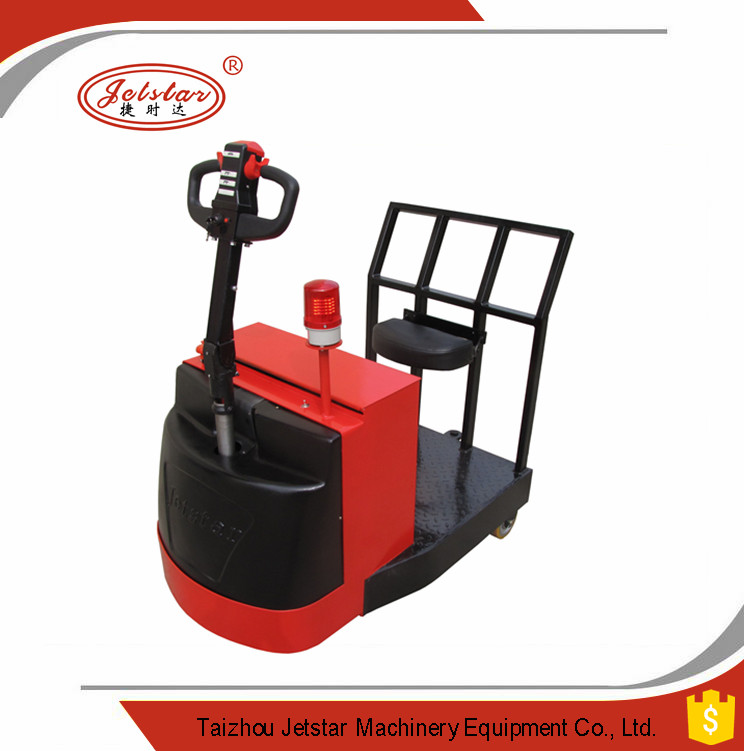

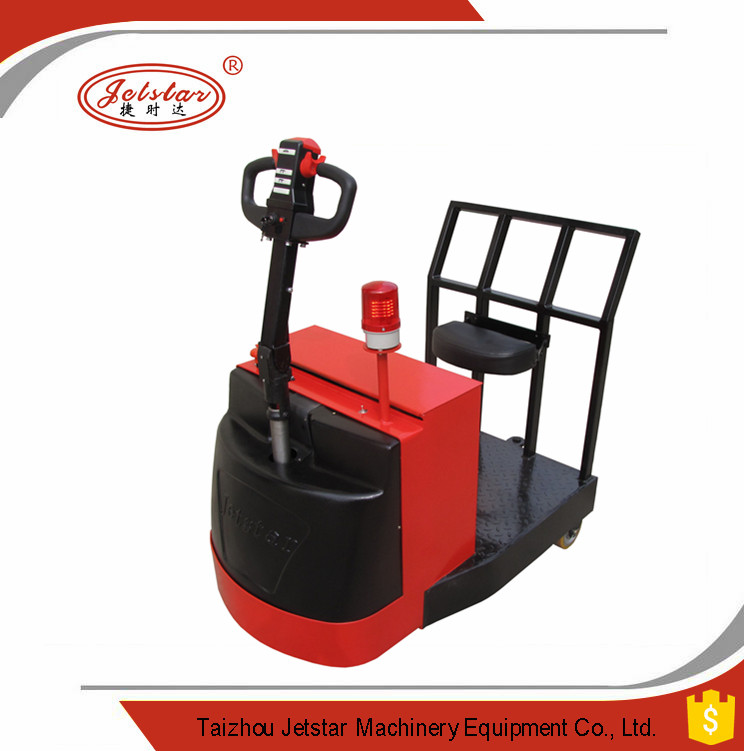

Standing Type Electric Tow Tractor

Standing Type Electric Tow Tractor

Product Abstract:

Standing Type Electric Tow Tractor


Product Description



Standing Type Electric Tow Tractor



1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.

2. Alternating current driving, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output.

3. Driven stepless speed regulation, safe, quiet, emergency reverse device/emergency brake switch.

4. Low gravity design, and speed of the driving is durable.

5. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.

6. Spacious and comfortable space, gives the operator comfortable driving.





Name

Standing Type Electric Tow Tractor?24V?

Operation type

Standing type

Model No.

Unit

EPQ30A

Power type



Electric

Wheel type



Polyurethane

Maximum traction weight

KG

3000

Max. traction

KG

1250

The vehicle height

H2(mm)

1400

Overall length

L(mm)

1334

Overall width

S(mm)

850

Max.Travel speed

Km/h

4/6.7

Wheelbase

mm

967

Turning radius

Wa(mm)

1160

Battery weight

KG

200

Steering type



                Mechanical steering

Parking brake type



Regenerative Brake

Body weight

KG

?550

Front wheel

mm

Ø230*75

Rear wheel

mm

Ø150*50

Battery capacity

V/Ah

24/210

Charger

V/Ah

24/30

Drive motor

Kw

1.5

Electronic control



CURTIS

Gearbox



ZF gear box
