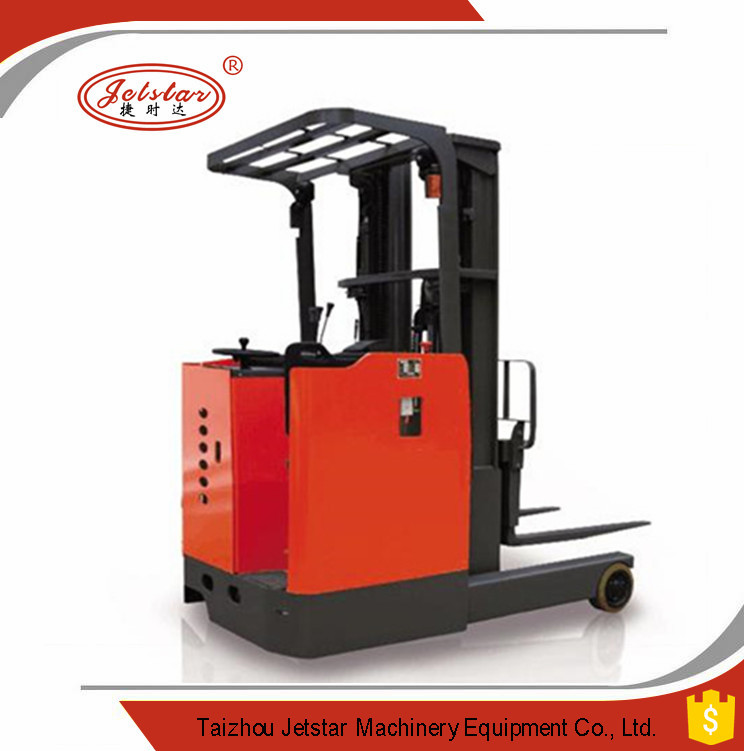

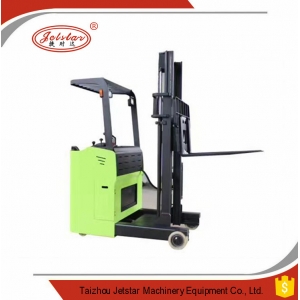

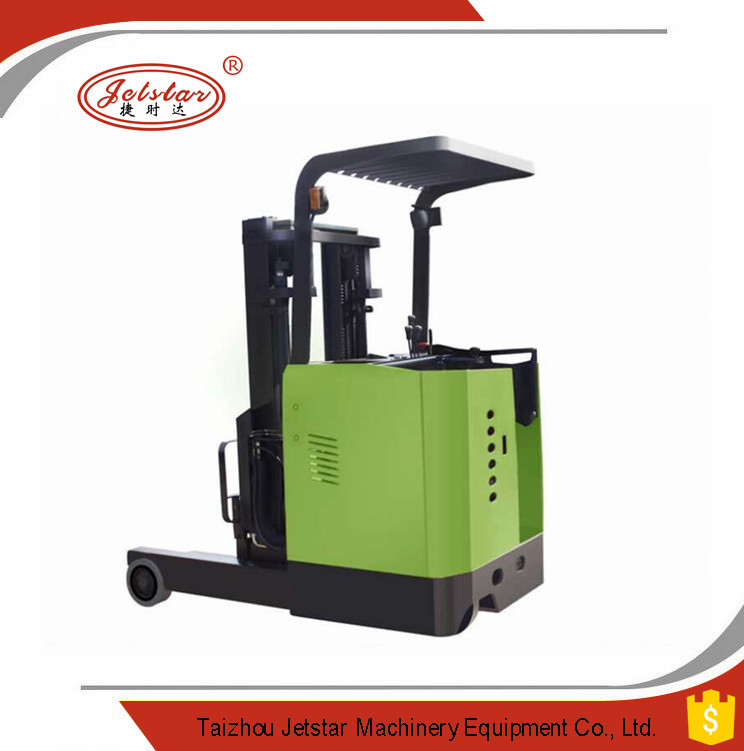

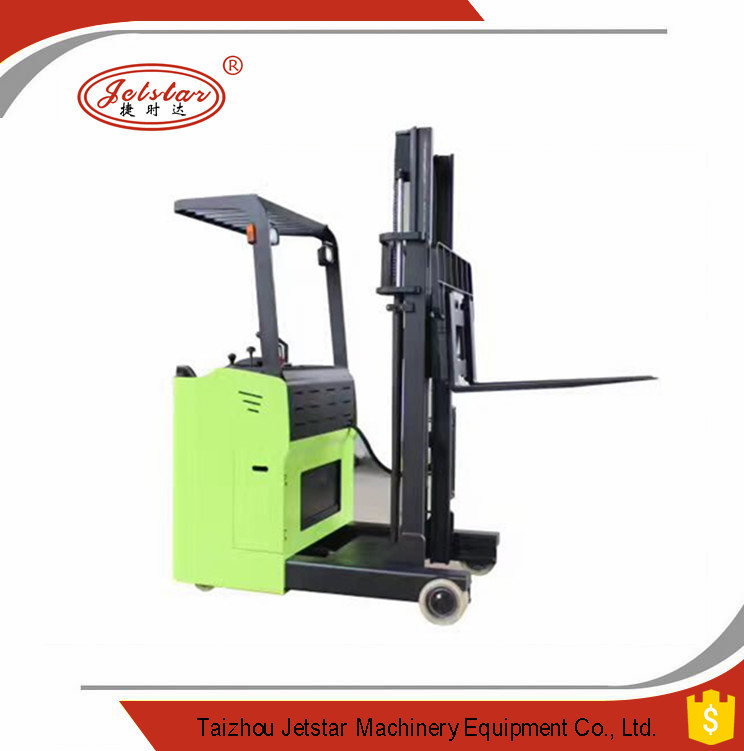

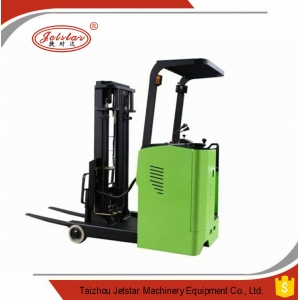

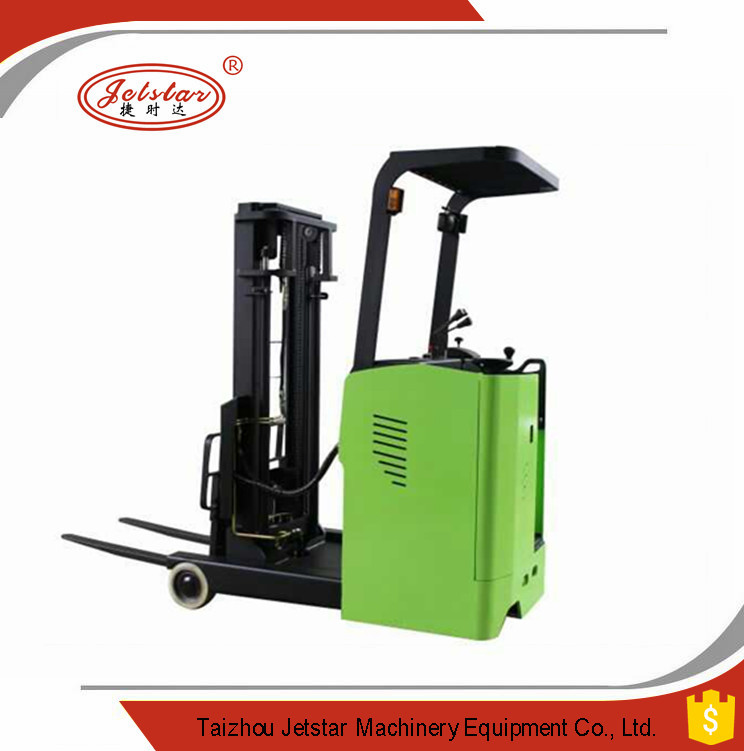

Standing Type Reach Truck

Home > Electric Reach Truck > Standing Type Reach Truck

Product Name:
Standing Type Reach Truck
Model No.:
EFQ15-30

Product Description

1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.

2. EPS swerve can reduce 20% of the energy consumption. It is precise, flexible, and convenient to operate. At the same time, it can reduce driver fatigue, boost productivity.

3. Moved forward type electric stacker is suitable for large tonnage, high hoisting cargo storage applications?applying to a variety of trays, and has the characteristics of moving forward for overall door frame. Furthermore, it has small turning radius and can neglect obstacles from the bottom of the shelf. So it is suitable for narrow channel.

4. During the operation of decline, the pallet fork is kept in safe when hoisting control lever is in decline position. Especially when pallet fork drop to 10 cm above the ground, then speed will slow down automatically. It can effectively protect the goods from damage due to vibration. When the pallet fork goes to the top, buffering systemcan reduce the vibration of the door frame. So it is comfortable for operator.

5. Placing your feet on electric breaking switch, then you can take control of the driving. Only after the foot stepped on power switch can operate vehicle, whereas the vehicle stop. So this design improves the vehicle's safety performance.

6. It is endurable and has long battery life because of 48V high power battery.

??Model No.	??Unit	EFQ15-30	EFQ 20-30	EFQ 25-30
????Power type		??? Full-Electric	??? Full-Electric	???Full-Electric
??Load Capacity	KG	1500	2000	2500
??????Max. lifting height	H2(mm)	3000	3000	3000
????Load center	C(mm)	500	500	500
????Wheel type		??????PU solid tire
??????The door frame tilt angle		3/5	3/5	3/5
????Fork dimensions	mm	107010035	107012240	107012240
??????Fork spread	mm	225-740	269-802	269-802
??????Reach distance	mm	605	720	720
???????Overall length including fork	L(mm)	2240	2470	2470
??Overall width	S(mm)	1098	1260	1260
???????Height--Mast Lowered	H1(mm)	2100	2100	2100
?????????Maximum height when fork is lifting	H(mm)	3900	3900	3900
????????Turning radius ?outside?	Wa(mm)	1615	1970	1970
?????The height of overhead guards	mm	2280	2280	2280
??????Min. stacking aisle (1000x1200,1200 along fork)	mm	2786	2940	2940
??????Min ground clearance	mm	80
??????Max travel speed	Km/h	6.5/7.2	6.8/7.8	6.8/7.8
????Lifting speed	mm/s	120/270	120/270	120/270
????Grade ability	%	≤10	≤10	≤10
??Total weight	KG	2300	2955	2955
???Driving Wheel	mm	Ø343*108	Ø382*142
??Front wheel	mm	Ø254*104	Ø267*114
???Balance wheel	mm	Ø180*76	Ø180*76
????Battery capacity	V/Ah	48/300	48/400	48/400
???Charger-Intelligent	V/A	48/40	48/50	48/50
????Driving motor	Kw	4.5	5.0	5.0
????Lifting motor	Kw	6.3	6.3	6.3
??????Drive Controller Type		4.5?AC?	5.0?AC?	5.0?AC?
??????Walking Adjustable Type		??????Holzer type accelerator
????Service brake type		????Electromagnetic braking
????Parking brake type		????Electromagnetic braking

Related Products

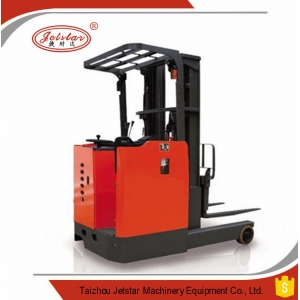

Standing Type Reach Truck
