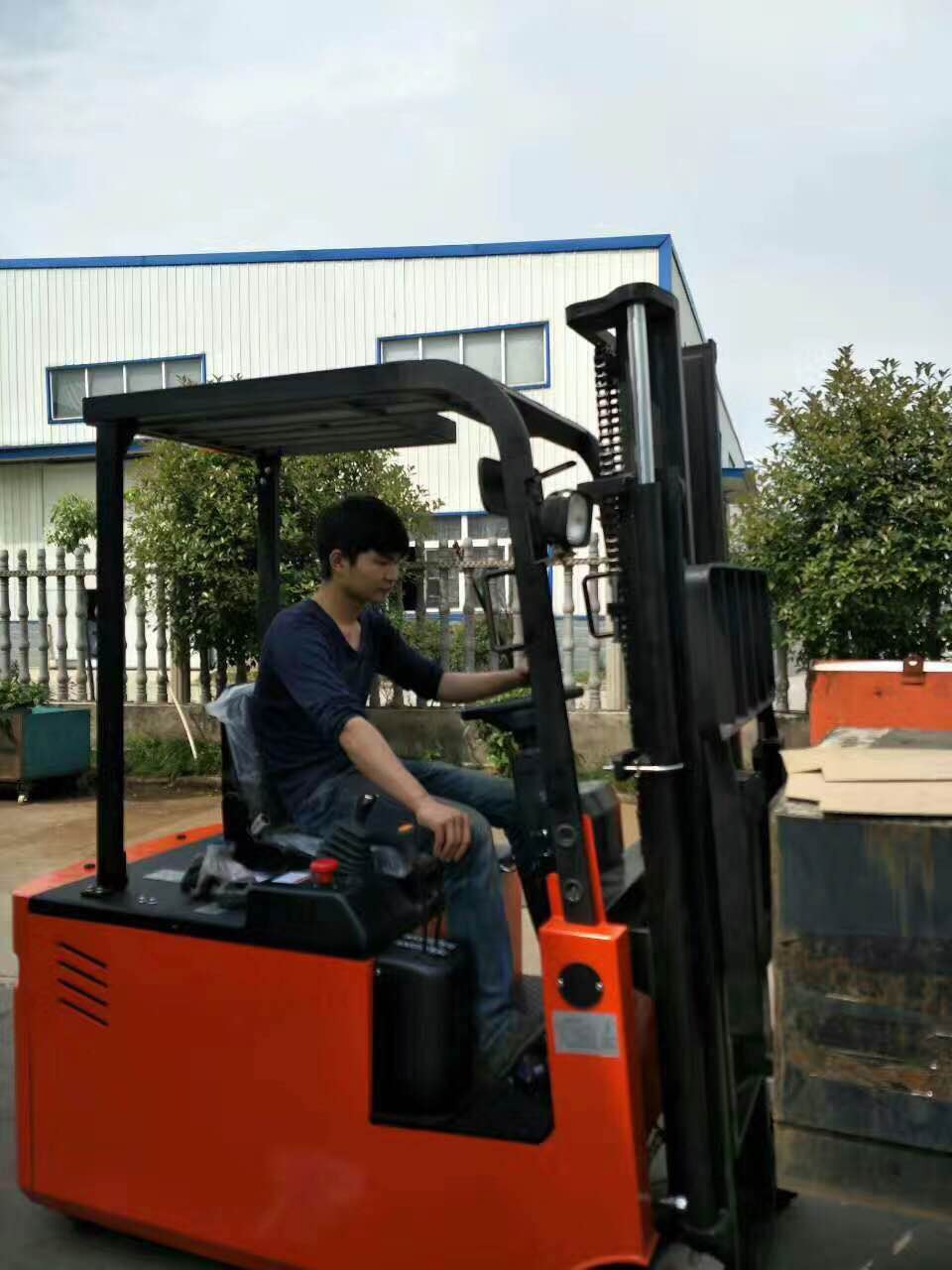

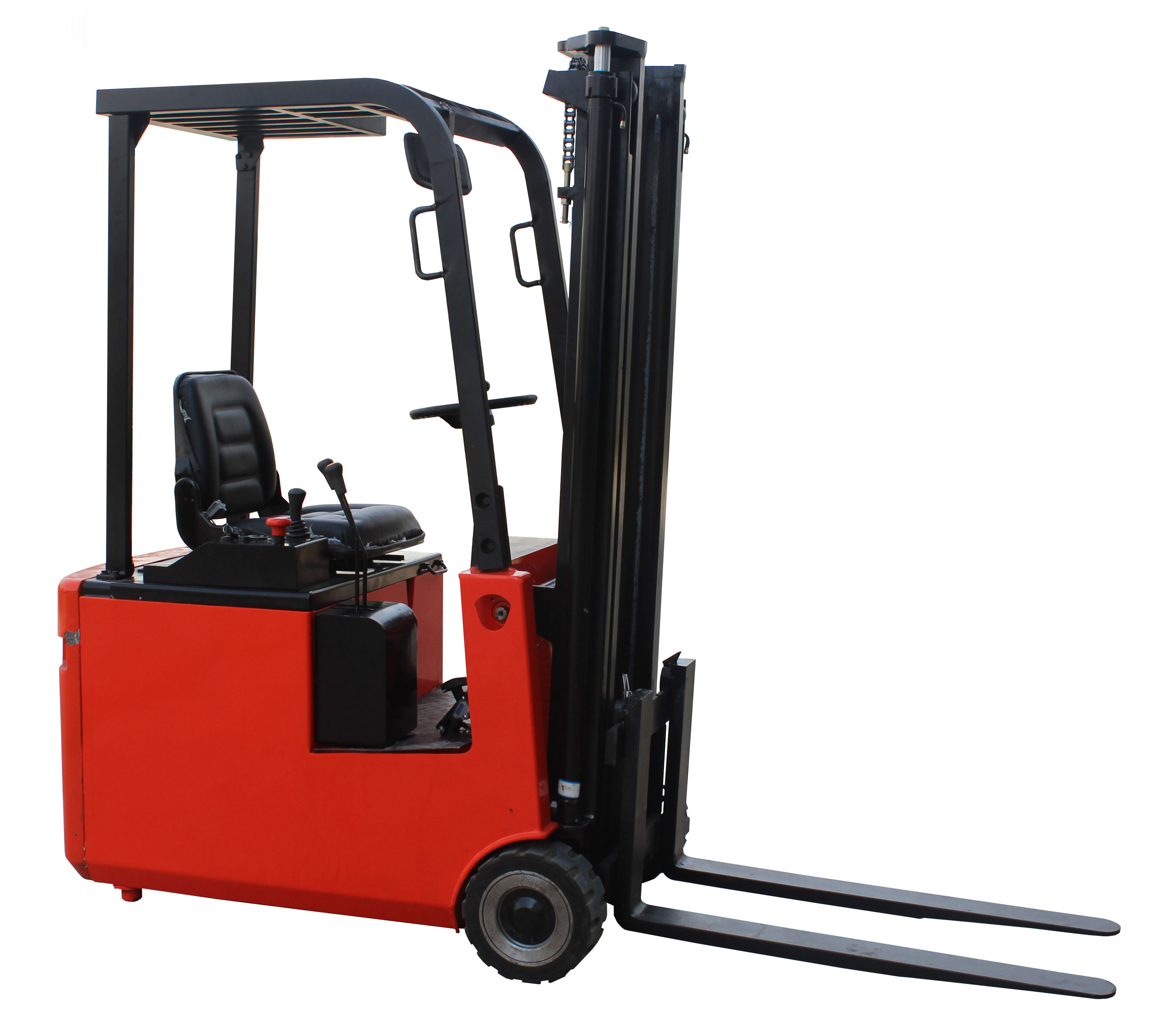

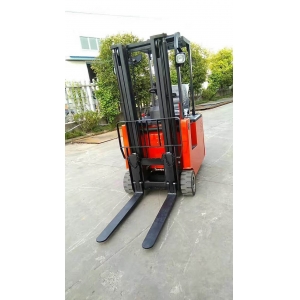

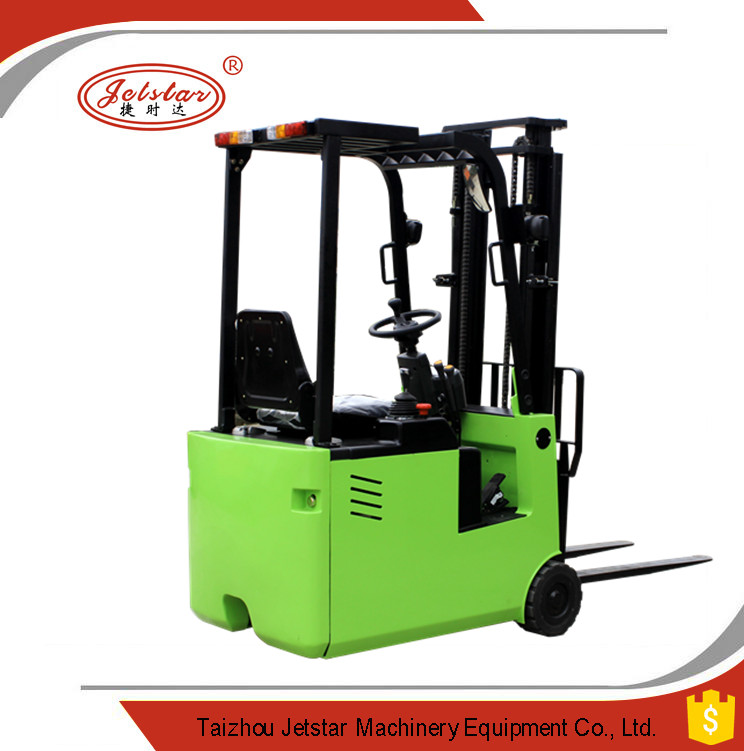

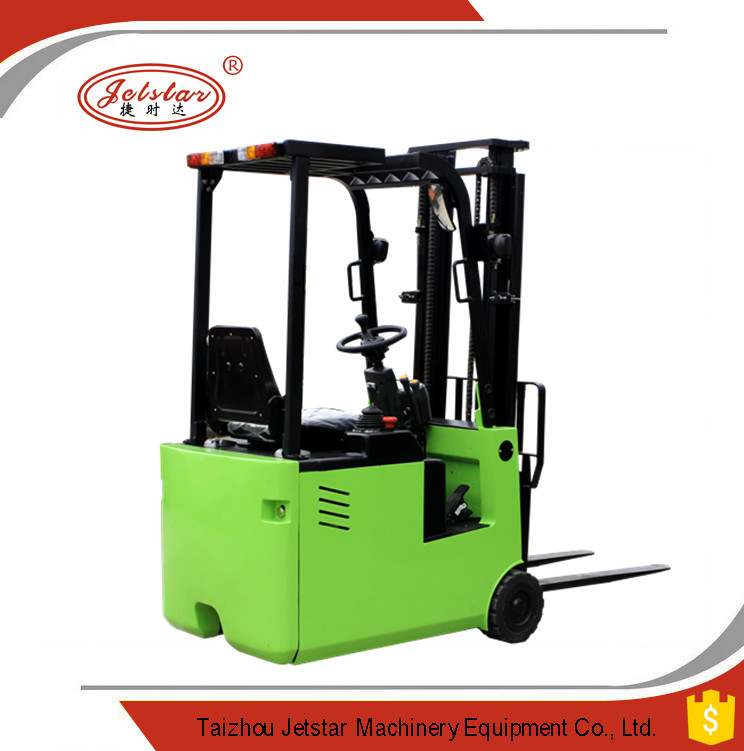

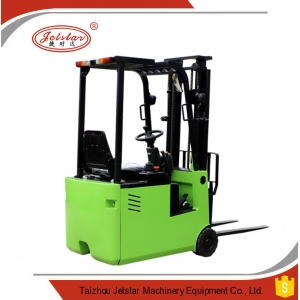

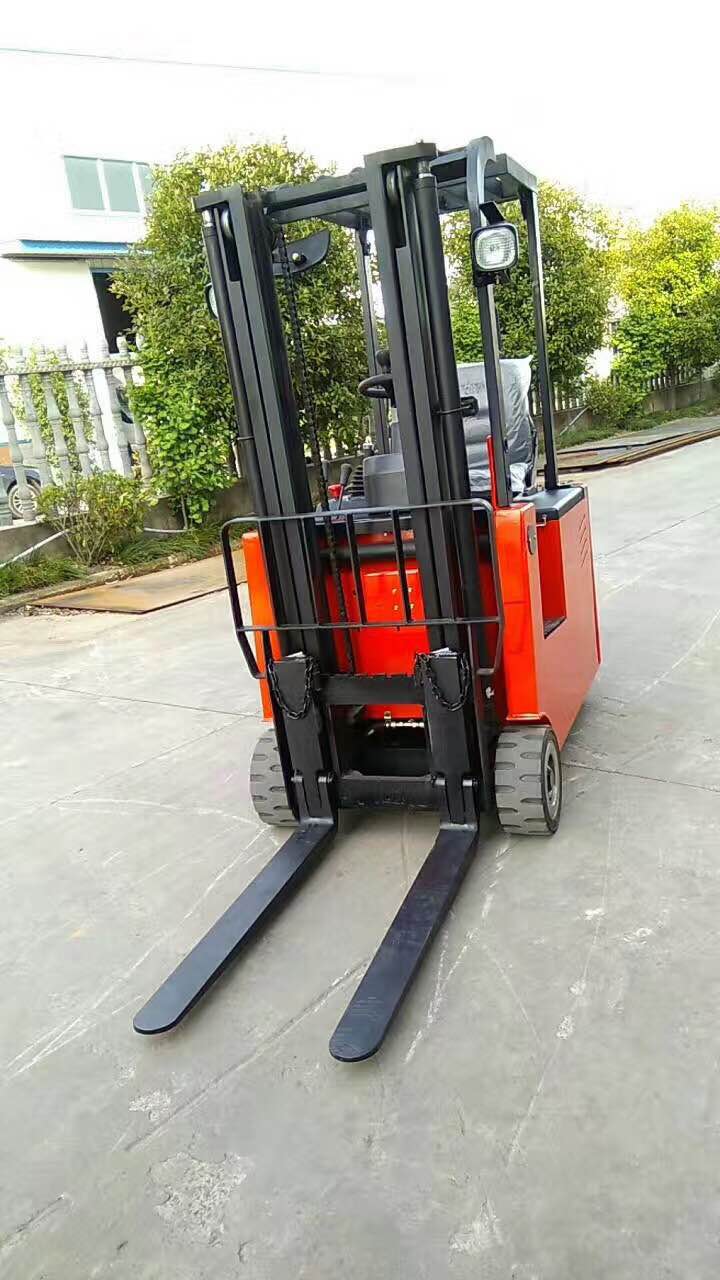

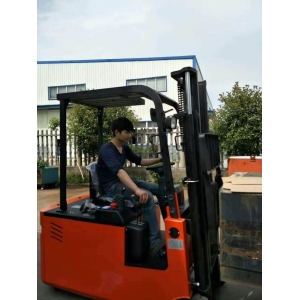

Three-wheel Counterbalanced Forklift

Home > Three-Wheel Electric Counterbalanced Forklift > Three-wheel Counterbalanced Forklift

Product Name:
Three-wheel Counterbalanced Forklift
Model No.:
Minimum Order:
1

Product Abstract:

Three-wheel Counterbalanced Forklift

Product Description

Three-wheel Counterbalanced Forklift

1. Because of CURTIS electronic control, so we have multiple automatic protection system controllers.

2. EPS swerve can reduce 20% of the energy consumption. It is precise, flexible, and convenient to operate. At the same time, it can reduce driver fatigue, boost productivity.

3. Vertical AC drive, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output.

4. Small volume, low weight, small turn radius, easily enter into the elevator, suitable for working in floor or within the carriage, improved the pass-ability and space utilization.

5. The front wheel of the solid rubber tyres, strong grip, and stable operation.

6. The design of portal-frame has a buffer system, leaning back function.

7. Forklift temporary parking ramp adopt both electronically controlled and the foot brake to get a double insurance.

Name	Three-wheel Counterbalanced Forklift?24V?
Operation type	Seated Type
Model No.	Unit	EFP10-30	EFP15-30
Power type		Full-electric	Full-electric
Load Capacity	KG	1000	1500
Max. lifting height	H(mm)	3000	3000
Load center	C(mm)	500	500
Wheel type		Front Wheel: Rubber Back Wheel: Polyurethane PU
Fork size	mm	107010035	107010035
Free lifting height	mm	0	0
Fork spread	mm	210-566	210-566
Overall length, no fork)	L(mm)	1466	1760
Overall Width	S(mm)	875	875
Height--Mast Lowered	H1(mm)	2035	2035
Maximum height when fork is lifting(Containing block shelves)	H2(mm)	3918	3918
Mast tilt angle		2/4	2/4
The height of overhead guards	H3(mm)	1995	1995
Turning radius	Wa(mm)	1315	1608
Min. stacking aisle	mm	2800	3095
Min ground clearance	mm	35
Max travel speed	Km/h	5.0 /5.2	5.0/5.2
Grade ability	%	6/8	6/8
Total weight	KG	1700	1950
Drive wheel	mm	Ø230*75	Ø230*75
Front wheel	mm	Ø305*127	Ø305*127
Wheelbase,variable type	L1(mm)	1000(gantry vertical)	1295(gantry vertical)
Battery capacity	V/Ah	24/270	24/300
Charger-Intelligent	V/Ah	24/30	24/30
Driving motor	Kw	2.5	2.5
Lifting motor	Kw	2.2	2.2
Walkie brake type		Pedal type/hydraulic
Parking brake type		Electromagnetic braking

Related Products

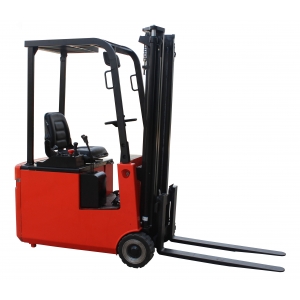

Three-wheel Counterbalanced Forklift
