Name

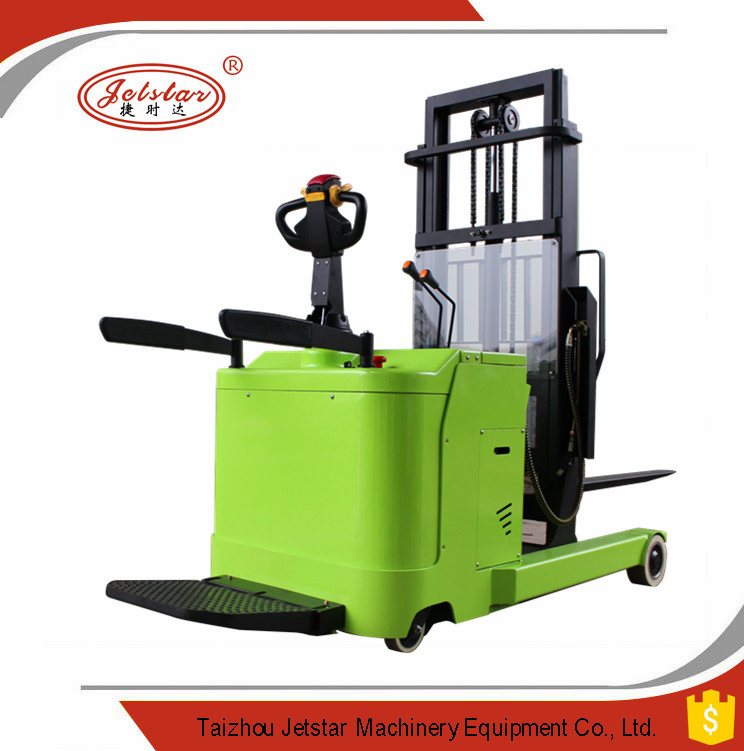

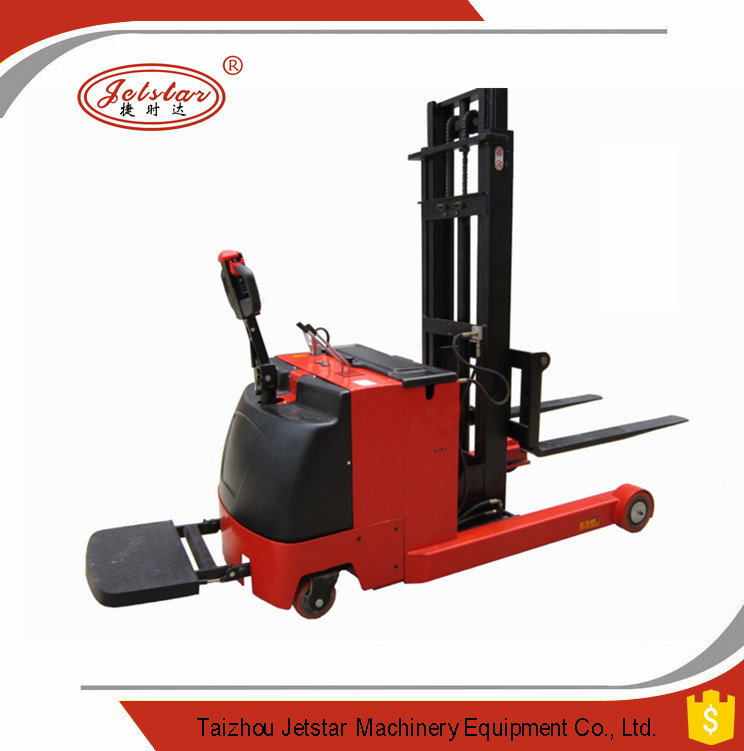

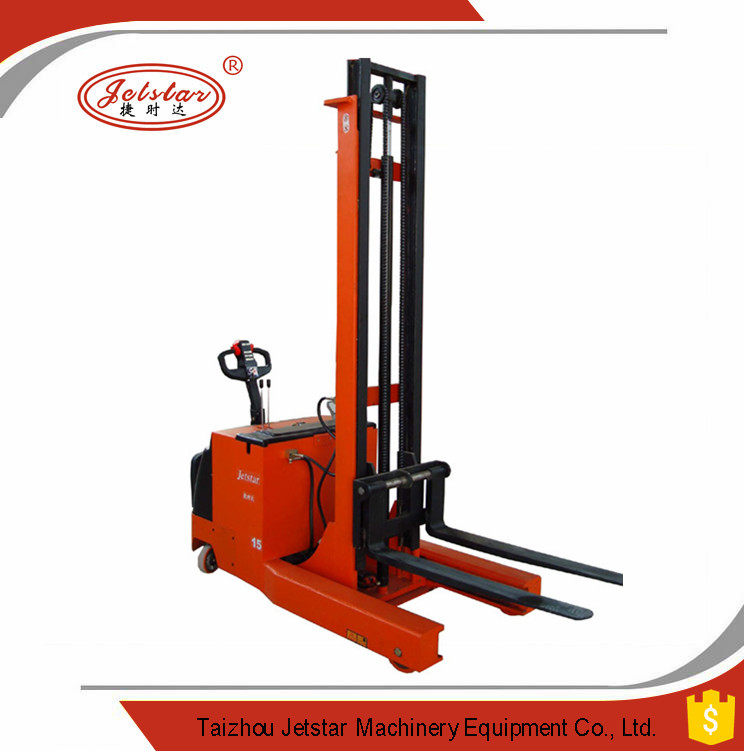

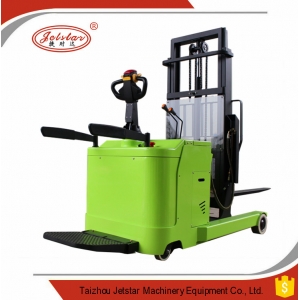

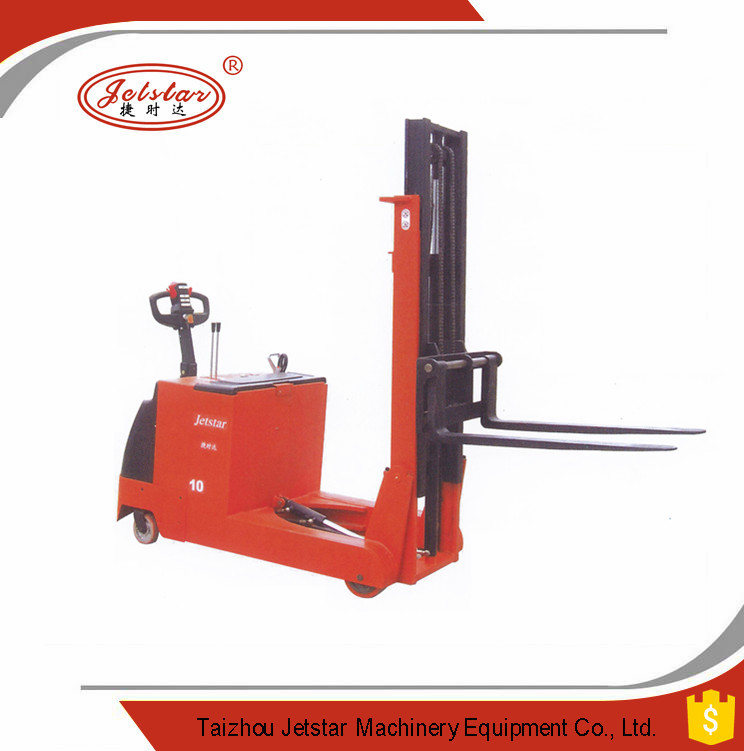

Standing Type Reach Truck?A  24V?

Operation type

Standing posture

Model No.

Unit

CQD10A-25

CQD15A-25

CQD20A-25

Power type

Full-Electric

Full-Electric

Full-Electric

Load Capacity

KG

1000

1500

2000

Max Lifting Height

H2(mm)

2500

2500

2500

Load center

C(mm)

500

500

500

Wheel type

 Pu solid tire

 Pu solid tire

Pu solid tire

Fork dimensions

mm

1070*100*35

1070*100*35

1070*122*40

Fork spread

mm

200-650

200-650

245-665

Reach distance

mm

500

600

675

Overall length including fork

L(mm)

2305

2305

2380

Overall width

S(mm)

1034

1034

1034

Height--Mast Lowered

H1(mm)

1840

1840

1840

Maximum height when fork is lifting

H(mm)

3416

3416

3416

Turning radius (outside)

Wa(mm)

1740

1650

1890

Min. stacking aisle(Pallet 1000x1200)?when the pedal fold?

mm

2705

2735

2830

Min. ground clearance

mm

70

70

70

Grade ability

%

5-8

5-8

4-6

Max. travel speed

Kw/h

4.0/5.0

4.0/5.0

4.0/5.0

Totalweight

KG

1875

1900

2050

Driving Wheel

mm

Ø230*75

Ø230*75

Ø230*75

Front wheel

mm

Ø210*85

Ø210*85

Ø210*85

Balance wheel

mm

Ø150*50

Ø150*50

Ø150*50

Battery capacity

V/Ah

24/210

24/210

24/210

Charger-Intelligent

V/A

24/30

24/30

24/30

Driving motor

Kw

1.5

1.5

2.5

Lifting motor

Kw

2.2

2.2

2.2

Drive Controlling Type

1.5(AC)

1.5(AC)

2.5(AC)

Walking Adjustable Type

Holzer type accelerator

Holzer type accelerator

Holzer type accelerator

Brake Type

electromagnetic braking

electromagnetic braking

electromagnetic braking

Steering Mode

Electric steering

Electric steering

Electric steering
