Name

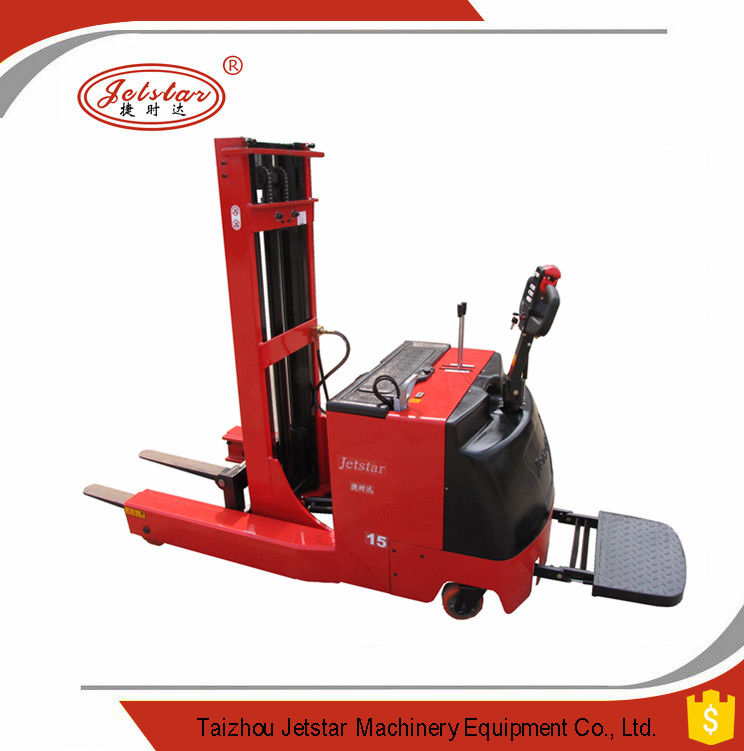

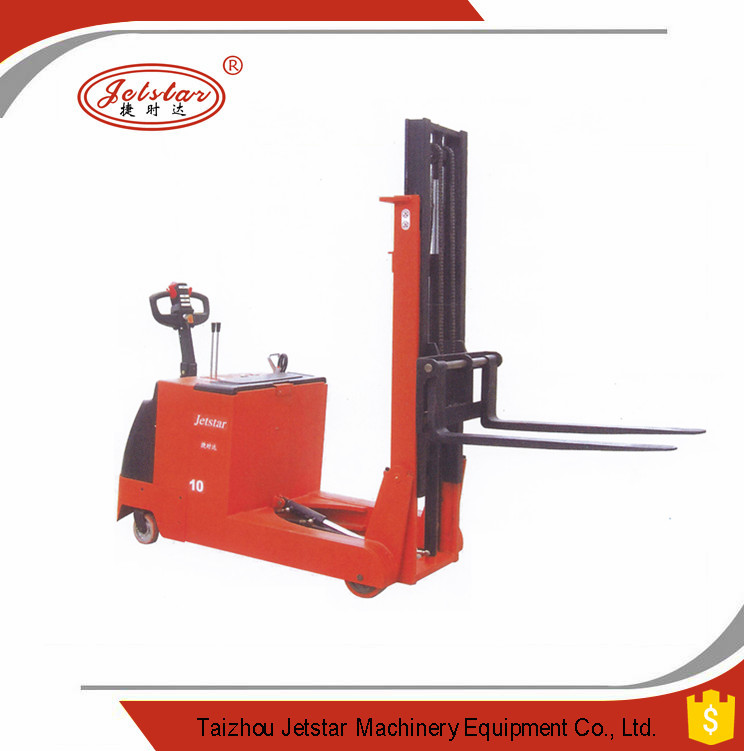

Standing Type Reach Truck(B Type 24V)

Operation type

Standing posture

Model No.

Unit

CQD12B-30

CQD15B-30

Power type

Full-Electric

Full-Electric

Load Capacity

KG

1200

1500

Max Lifting Height

H2(mm)

3000

3000

Load center

C(mm)

500

500

Wheel type

Pu solid tire

Pu solid tire

Frame title Angle

3/5

3/5

Fork dimensions

   mm

1070*100*35

1070*100*35

Fork spread

mm

200-680

200-680

Reach distance

mm

500

500

Overall length including fork

L(mm)

2320

2320

Overall width

S(mm)

1090

1090

Height--Mast Lowered

H1(mm)

2090

2090

Maximum height when fork is lifting

H(mm)

3914

3914

Turning radius  ?outside?

Wa(mm)

1620

1715

The height of overhead guards

mm

2280

2280

Min. stacking aisle(Pallet 1000x1200)

mm

2716

2740

Min ground clearance

mm

80

80

Grade ability

%

≤6

≤8

Total weight

KG

2050

2300

Driving Wheel

mm

Ø230*75

Ø310*125

Front wheel

mm

Ø254*104

Ø254*104

Balance wheel

mm

Ø180*76

Ø180*76

Battery capacity

V/Ah

24/280

24/400

Charger-Intelligent

V/A

24/35

24/60

Driving motor

Kw

2.5

3.0

Lifting motor

Kw

3.0

3.0

Drive Controlling Type

2.5(AC)

3.0(AC)

Walking Adjustable Type

Holzer type accelerator

Holzer type accelerator

Brake Type

electromagnetic braking

electromagnetic braking

Steering Type

electrical steering

electrical steering
